- Floorplan - 2017 Coachmen RV Freedom Express 276RKDS
1 of 14
+14
-
Sleeps 4
-
2 Slides
-
Two Entry/Exit DoorsRear Kitchen
-
32ft Long
-
6,091 lbs

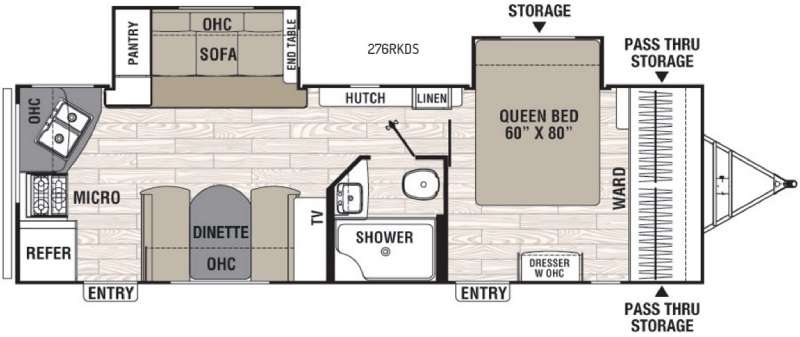

276RKDS Floorplan
276RKDS Floorplan
Specifications
Specifications
Sleeps | 4 | Slides | 2 |
Length | 31 ft 6 in | Ext Width | 8 ft |
Ext Height | 10 ft 9 in | Hitch Weight | 730 lbs |
GVWR | 7600 lbs | Dry Weight | 6091 lbs |
Cargo Capacity | 1509 lbs | Fresh Water Capacity | 49 gals |
Grey Water Capacity | 66 gals | Black Water Capacity | 33 gals |
Tire Size | ST205/75R14C |
Description
Description
This Coachmen Freedom Express travel trailer model 276RKDS offers a rear kitchen layout, dual entry doors, and dual slide outs for added space inside.
As you enter the rear most door you will find a handy refrigerator right inside to your left. Next to the refrigerator and across the rear of the unit find a three burner range, and double sink. There are overhead cabinets for storage as well.
Straight in the door find a slide out sofa with end table including storage above, plus a pantry. More seating is available on the opposite side at the booth dinette that also features overhead cabinets, and a space for a flat screen TV along the outer bathroom wall.
There is a hutch base along the road side just beyond the sofa slide out next to a linen storage cabinet. Opposite, a convenient bathroom featuring a shower, toilet, and a vanity with sink, plus overhead cabinet.
A sliding hallway door leads into the front private master bedroom which features its own exterior entry/exit door. Inside find a queen bed slide out, a dresser, and a full front wardrobe with exterior pass-through storage beneath, and so much more!
As you enter the rear most door you will find a handy refrigerator right inside to your left. Next to the refrigerator and across the rear of the unit find a three burner range, and double sink. There are overhead cabinets for storage as well.
Straight in the door find a slide out sofa with end table including storage above, plus a pantry. More seating is available on the opposite side at the booth dinette that also features overhead cabinets, and a space for a flat screen TV along the outer bathroom wall.
There is a hutch base along the road side just beyond the sofa slide out next to a linen storage cabinet. Opposite, a convenient bathroom featuring a shower, toilet, and a vanity with sink, plus overhead cabinet.
A sliding hallway door leads into the front private master bedroom which features its own exterior entry/exit door. Inside find a queen bed slide out, a dresser, and a full front wardrobe with exterior pass-through storage beneath, and so much more!
Options:
- 1 - 200 WATTS SOLAR PANEL
- 1 A/C UNIT
- 1 AWNING
- 1 FAN
- 1 INSIDE TV
- 1 SKYLITE - SHOWER
- 1500 WATTS INVERTER
- 2 SLIDES
- 3 COACH BATTERIES
- 7 CU FT - 2 DOOR FRIDGE
- ALUM. ALLOY WHEELS
- AMVIC LICENSED
- BATTERY INCLUDED / CHARGED
- BOOTH
- CABLE / SOLAR & SAT PREP
- COMPLIMENTARY PDI / ORIENTATION
- CUT OFF SWITCH
- ENCL. TANKS
- LTHR JACK-KNIFE COUCH
- MAN. LEV. SYSTEM
- NO FEES. YOU PAY WHAT YOU SEE PLUS GST
- OUTDOOR BBQ GRILL
- PARTS GIFT CERTIFICATE INCLUDED
- PROPANE & ELECTRIC H20 HTR
- PROPANE FURNACE
- PROPANE TANK INCLUDED / FILLED
- PWR TONGUE JACK
- QUEEN BED
- RADIO / BT
- RANGE / OVEN / MICRO
- READY TO CAMP PACKAGE
- SHOWER
Features
Features
Standard Features (2017)
Interior and Decor
- Independence Maple Hardwood Cabinet Doors and Drawer Faces
- Furniture Grade, Pocket Drilled and Screwed Stile and Rail Cabinet Front Construction
- Full Extension Roller Bearing Drawer Guides
- Designer Hard Valance with Soft sided Window Treatments
- Range Hood w/ 12V Exhaust and Light
- Sealed/Seamless Counter-tops
- Brushed Nickel Hardware
- High-Rise Kitchen Faucet
- 60/40 Stonecast Composite Kitchen Sink (N/A Special Editions)
- Silverware Drawer with Removable Tray (Select Models)
- Jackknife Sofa (N/A Liberty/Maple Leaf Editions)
- Dinette Storage Access Doors (No doors on Special Editions)
- Accent Wall in Master Bedroom
- Two Full-Length Mirrored Closets, Over-Bed Cabinets (Master)
- Two Nightstands with 110V Outlets (Most models)
- Storage Under Master Bed and Bunks (Select models)
- Wooden Privacy Slider Doors to Master Suite In Place of Curtain or Accordion Door (Most models)
- Vent in Master Bedroom
- Entertainment Tower with Rotating TV for Bedroom Viewing (Select models) (N/A Special Editions)
- Exhaust Vent with Fan in Bathroom
- Wood Medicine Cabinet with Bathroom Mirror and Cosmetics Shelf
- Hi Rise Foot Flush Toilet
- Interior Speakers with Selector Switch
- 55 Amp Power Converter
- GFI Receptacles in Bathroom and Kitchen
- LP Leak Alarm
- Fire Extinguisher
- Smoke and Carbon Dioxide Detector
- Multiple Egress Windows with Screen and Prop Rod
- Cable Support Tent Ends - 1000# Capacity (Expandables Only)
Exterior
- Dual 20# LP bottles
- LP Bottle Cover w/Valve Access
- 60° A-frame
- Dual Battery Rack
- Insulated, Painted Radius Entry Door with Screen Door
- Amber Patio Light
- Nitrogen Filled Radial Tires
- Water Heater Bypass
- Heavy Duty Welded Safety Chains
- Four-Wheel Electric Brakes
- Breakaway Safety Cable
- Exterior GFI Outlet Near Awning
- High-Capacity Roto-Cast Holding and Fresh Water Tanks
- HappiJac Double Hat Rail, Rack and Pinion 12V Slide System (18" slides)
- LCI Rack and Pinion 12V Slide System with Full Width Welded Ram (38" slides)
- Schwintek Slide System (Some models) (N/A Special Editions)
Construction
- Alumicage Welded Aluminum Structure, Vacuum Bonded Floor and Sidewalls
- Azdel Composite (IPO luan behind fiberglass)
- Smooth Fiberglass Exterior Skin
- Aluminum Framed Openings
- Powder E-Coated Steps and Axles
- Floor Plan Specific Cambered Frame Design
- Full Walk-on, Crowned, Aluminum Reinforced Roof with EPDM Membrane over 3/8” Roof Decking
- Double Wiper Seals on All Slide outs
Standard Extras
- Green Certification
- Seal Tech and Rain Bay Testing on Every Unit
- One-Year Free Membership to Coachnet Roadside Assistance
- One-year Free Membership to Coachmen Owner's Association (C.O.A.)
Options
- 15,000 BTU A/C
- 50 Amp Service w/Second A/C Prep
- Push-Button Stabilizer Jacks (25' and above)
- Power Tongue Jack
- Coleman Slide out High Output Grill (Select models)
- Hide-A-Bed (Deep slides only)
- RV Eye Wi-Fi Cameras
- Frameless Windows
- Ladder (N/A 271 BL and 301 BLDS)
- 8 Cu. Ft. Refrigerator
- Thermal Pack
- Free Standing Dinette with 4 Chairs
- Canadian Compliance
Freedom Value Package (REQUIRED)
- ¾ Gel Coated Fiberglass Front Cap with
- LED Lights
- Aluminum Wheels
- Spare Tire Kit
- Detachable Power Cord
- Power Awning
- Magnetic Catch Compartment Doors
- Tinted Safety Glass Windows
- Front Diamond Plate
- TV & Radio Antenna with Booster
- E-Z Lube® Axles
- Spread Axle Design (N/A on Models Under 25')
- Heated Enclosed Underbelly (N/A on Models Under 25')
- Solar Port
- Folding Entry Assist Handle
- Exterior Shower Station
- Winterize Ready Kit
- Black Tank Flush
- 2 Exterior Speakers, 4 Interior Speakers
- Ducted Furnace (N/A on Models Under 25')
- Ducted Ceiling Air Conditioning (25’ and above)
- AM/FM/CD/DVD/Bluetooth
- 24”, 32” or 39” LED TV
- Satellite Ready
- LED Interior Lighting Throughout
- Night Shades Throughout
- Congoleum Designer Carefree Flooring
- Mortise and Tenon Cabinet Doors
- Stonecast Sink
- Sink Covers
- Galley LED Strip Light
- Microwave
- Oven with 3 Burner Cooktop
- Butcher Block Stove Cover
- 6 Cu. Ft. Two Door Refrigerator
- Silverware Drawer (select models)
- 60” x 80” Queen Bed
- LED Swivel Crystal Reading/ Night Light – Bedroom
- Electronic Charging Station
- Skylight in Bath
- RVIA
- LED 4” Recessed Lights in Living Area
- White LED Awning Light
- 12” LED Step Light
- LED Light Strip in Pass-through Storage (N/A 276 RKDS, 297 RLDS)
- 24” x 48” Resin Outdoor Table
Special Edition Package (SE Models)
- Radial Tires with Silver Steel Wheels
- Spare Tire
- Black Fenders with Black Skirt Metal
- Detachable Power Cord
- Power Awning
- Solar Port
- Tinted Safety Glass Windows
- Front Diamond Plate
- TV and Radio Antenna with Booster
- E-Z Lube® Axles
- Heated/Enclosed Underbelly
- 33/33 Gal Grey, Black Holding Tank
- 49 Gal Fresh Water Tank
- Two Exterior Speakers
- AM/FM/Bluetooth Stereo
- Two Interior Speakers
- Ducted AC
- Ducted Furnace
- 6 Gal DSI Gas/Electric Water Heater
- LED Interior Lighting
- Mortise and Tenon Cabinet Door
- Congoleum Diamond Flooring
- Night Shades
- Microwave
- Oven with 3-Burner Cooktop
- 6 Cu. Ft. Two-door Refrigerator
- Silverware Drawer (select models)
- Double Basin Sink
- Bath Skylight
- 60” x 80” Queen Mattress with
- corative Bedspread
- RVIA
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
