Floorplan - 2015 Forest River RV Wildwood 24RKS
-
-
-
-
1 of 6
+6-
Sleeps 4
-
1 Slides
-
Two Entry/Exit DoorsRear Kitchen
-
28ft Long
-
5,444 lbs

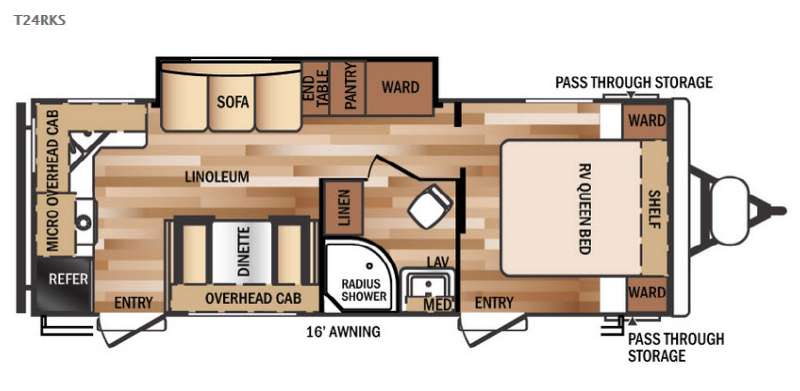

24RKS Floorplan
24RKS Floorplan
Specifications
Specifications
| Sleeps | 4 | Slides | 1 |
| Length | 27 ft 10 in | Ext Width | 8 ft |
| Ext Height | 11 ft 3 in | Int Height | 6 ft 8 in |
| Hitch Weight | 625 lbs | GVWR | 7625 lbs |
| Dry Weight | 5444 lbs | Cargo Capacity | 2143 lbs |
| Fresh Water Capacity | 76 gals | Grey Water Capacity | 64 gals |
| Black Water Capacity | 27 gals | Furnace BTU | 25000 btu |
Description
Description
The Wildwood 24RKS travel trailer by Forest River offers a rear kitchen and a single slide.
As you enter the rear entrance of the trailer, along the rear wall there is a refrigerator, three burner range, microwave, and double kitchen sink. The slide offers a sofa, end table, pantry, and wardrobe. On the opposite side of the trailer there is a dinette.
The bathroom offers a toilet, sink, medicine cabinet, radius shower, and linen cabinet.
In the front bedroom you will find a queen bed with wardrobes on either side of the bed. There is also a private entrance from the bedroom to outside.
You will find plenty of overhead cabinets throughout the trailer as well as an exterior pass thru storage area.
Options:
- 1 FAN
- 1 INSIDE TV
- 1 SKYLIGHT
- 1 SLIDE
- 12 FT PWR AWNING
- 2 DOOR ENTRY
- 4 - PWR JACKS
- 6 CU FT - 2 DOOR FRIDGE
- A/C
- AMVIC LICENSED BUSINESS
- BATTERY INCLUDED / CHARGED
- BOOTH
- CABLE & SOLAR PREP
- COMPLIMENTARY PDI / ORIENTATION
- GUARANTEE RV - READY - TO - CAMP PACKAGE
- HEATED ENCL. TANKS
- IN-FLOOR HEAT DUCTS
- JACK-KNIFE COUCH
- LTHR COUCH
- NO FEES. YOU PAY WHAT YOU SEE PLUS GST
- OUTSIDE SHOWER
- PARTS GIFT CERTIFICATE INCLUDED
- PROPANE FURNACE
- PROPANE H20 HTR
- PROPANE TANK INCLUDED / FILLED
- PWR TONGUE JACK
- QUEEN BED - UPGRADED MATTRESS
- RADIO / CD / MP3
- RANGE / OVEN / MICRO
- SHOWER
Features
Features
Standard Features (2015)
East Region
Construction and Exterior
Construction and Exterior
- Full walk on one-piece seamless Superflex® roof w/ 12 year warranty
- Extra large full pass through storage (per floorplan)
- 5/8" Tongue and Groove Plywood Floor
- Cold crack and mildew resistant vinyl patio awning
- Safety glass windows
- Steel framed 30″ smooth radius fiberglass main entry door
- Powder coated I-beam frame
- Cambered chassis
- Enclosed fresh water tank in a heated compartment
- 16 gal per hour Gas/Electric quick recovery DSI water heater
- Water heater by-pass
- Nitrogen filled tires
- 2″ wall construction 16″ (or less) on center
- R-7 fiberglass insulation throughout
- 13 ply cross micro-laminated beam header above slide outs
- Triple seal slide outs
- Electric slide out systems (flush floor)
- Swing arm entry assist handle
- Two marine grade exterior speakers
- Electric front jacks (fifth wheels)
- Fiberglass front cap (fifth wheels)
- New Aerodynamic Front Radius
Kitchen
- Dometic® double door refrigerator (2 yr. warranty)
- High rise faucet
- Deep basin 60/40 residential style sink
- Microwave w/ carousel
- 3-Burner, high output range with oven (2 yr. warranty)
- Range hood w/ 12V exhaust fan and light
- One piece plank wood linoleum flooring
- 27" Tall Overhead Kitchen Cabinet
- Wood Drawers w/Furniture-Grade Plywood Slides
- Knife rack (behind cooktop)
- Shelving in overhead cabinets in Kitchen
- Central switch location for command center
- Brushed Stainless Finish Hardware
- Full extension ball bearing drawer guides
- Abundant cabinet storage
- Hardwood Dinette Table Top
- Large Pots and Pans Drawer Under Dinette
Living Room
- 80″ interior height travel trailers (101″ fifth wheel models)
- Ducted 13,500 BTU roof air conditioner w/ quick cool
- Huge storage drawer under jiffy sofa
- Extra large booth dinette w/ large drawer (most models)
- Large dinette picture window
- Digital TV antenna and booster
- Standard FM stereo w/ CD/DVD and four cube speakers
- Patio door w/ vertical blinds (36BHBS, 37BHSS2Q, 38RLTS)
- Decorative wall light
- 25K BTU suburban forced air DSI furnace w/ digital thermostat (2 yr. warranty)
- In-floor ducted heat
- Booth Dinette w/Large Storage Drawer (Most Models) (U-Shaped Dinette, Some Models)
- Flip TV Mount (Most Models)
- Cable TV Hookup
- Wall Switch Controls for Ceiling Lights at Key Locations
Bedroom
- Evergreen mattress
- Plush comforter and headboard
- Strut lifted storage area under bed (Master Bedroom)
- Bedside mirrored wardrobes w/ shelf Above Bed
- Bedside 110V power outlets (2)
- Solid bedroom privacy doors (most models)
- Storage shelf above bed
- Increased Space at the Front of the Bed (Most Models)
- Bedside Hamper Access (most Models)
Bathroom
- 12V Power Bath Roof Exhaust Vent
- Wooden medicine cabinet w/ mirrored door
- Foot flush toilet
- Tooth brush holder and towel ring
- Vinyl tub surround (Neo-Angle Showers Have an Enclosure) (Select Floorplans)
- One-Piece Linoleum Floor
Security and Safety
- LED docking lights (fifth wheels)
- LP leak detector
- Smoke detector
- Carbon monoxide detector
- Fire extinguisher
- Hitch light (travel trailers)
- Amber patio light
- Welded heavy duty safety chains (travel trailers)
- Electric brakes (all wheels)
- GFI receptacles
- ANSI 119.2 certified
- Meets all national highway administration specifications
Options
- Stabilizer jacks [travel trailer (4) or fifth wheel (2)]
- Skylight over tub
- 30 lb LP bottles w/ cover and auto change over (travel trailers)
- 12V Power Four Corner Jacks
- Power Awning
- 15,000 BTU ducted air w/ quick cool
- Contact your Wildwood dealer for a complete list of options.
Construction and Exterior
- Full walk on one-piece Superflex® roof w/12 year warranty
- Extra large full pass through storage (per floorplan)
- Cold crack and mildew resistant vinyl patio awning
- Safety glass windows
- Steel framed 30″ smooth radius fiberglass main entry door
- Cambered chassis
- Enclosed fresh water tank in a heated compartment
- 16-gal. per hour GE quick recovery DSI water heater
- Water heater by-pass
- 2″ wall construction 16″ (or less) on center
- R-7 fiberglass insulation throughout
- 13 ply cross micro-laminated beam header above slide outs
- Triple seal slide outs
- Electric slide out systems (flush floor)
- Swing arm entry assist handle
- Two marine grade exterior speakers
- LP leak detector
- Smoke detector
- Carbon monoxide detector
- Fire extinguisher
- Hitch light
- Welded heavy duty safety chains
- Electric brakes (all wheels)
- GFI receptacles
- ANSI 119.2 certified
- Meets all national highway administration specifications
- Dometic® double door refrigerator (2 yr. warranty)
- High rise faucet
- Deep basin 60/40 residential style sink
- Microwave w/ carousel
- 3-Burner, high output range with oven (2 yr. warranty)
- Range hood w/ 12-volt exhaust fan and light
- One piece plank wood linoleum flooring
- Solid wood drawers
- Knife rack (behind cook top)
- Large overhead cabinets w/ glass inserts
- Central switch command center
- Nickel finished hardware
- Full extension ball bearing drawer guides
- Abundant cabinet storage
- Hinged 1/2 barrel storage (Some models)
- 80″ interior height travel trailers
- Ducted 13,500 BTU high output roof air conditioner w/ quick cool
- Huge storage drawer at sofa base (select models)
- Extra large booth dinette w/ large drawer (most models)
- Large dinette picture window
- Digital TV antenna and booster
- Cable TV/ satellite hook-up
- Standard FM stereo w/ DVD and four cube speakers
- Decorative wall light
- 25K BTU suburban forced air DSI furnace w/ digital thermostat (2 yr. warranty)
- In-floor ducted heat
- Residential bed mattress
- Plush comforter and headboard
- Strut lifted storage area under bed
- Bedside mirrored wardrobes w/ shelf
- Bedside 110-volt power outlets (2)
- Solid bedroom privacy doors (most models)
- Storage shelf above bed
- 12-volt power bath roof exhaust vent
- Wooden medicine cabinet w/ mirrored door
- Foot flush toilet
- Tooth brush holder and towel ring
- Vinyl tub surround
- Frosted glass barrel shower with tub surround (21RBS, 23RBS, 24RKS, 27RLSS, 27RKSS)
- 4 Power stabilizer jacks
- Skylight over tub
- 30-lb LP bottles w/ cover and auto change over
- Power Awning with Adjustable Legs
- Power Tongue Jack
- Touch Screen Remote
- External LED Strip Lighting
- AM/FM/CD/DVD Player
- Night Shades
- Decorative Curtain Rods
- Astro Foil (Ceiling and Floor)
- Upgraded Mattress
- Black Tank Flush
- Bedroom Roof Vent
- LP Quick Disconnect
- Coat Rack
- 22″ Range (Certain Models)
- 6′ 8″ Interior Height
- Range w/ Oven In Place of Cooktop
- Double Door Refer
- Super Lube Axles
- Smooth Metal Front Wrap w/ Rock Guard
- Switch Control Center
- TV Antenna w/ Booster
- Microwave w/ Carousel
- Water Heater By-Pass (N/A w/ Tank less)
- Radial Tires
- 13.5 K BTU Ducted Air Conditioner
- Exterior Marine Speakers
- Designer Bedding
- Wood Plank Linoleum
- Decorative Curtain Rods w/ Pleated Shades in Living Area
- Retractable Awning
- Safety Glass Black Framed Slider Windows
- Radius Entry Door and Steps
- 30 amp Power Cord
- Pass Through Storage (most models)
- Full Extension Ball Bearing Drawer Guides
- 6gal Direct Spark Ignition Gas/Electric Water Heater
- Foot Flush Toilet
- DVD, MP3, CD, FM Stereo
- Self Adjusting Brakes
- 56gal Fresh Water Capacity
- Outside Kitchen (T32BHDS)
- Glass Shower Door (With Neo Angle Shower)
- Spare Tire & Carrier w/ Cover
- 15 K BTU Ducted Air Conditioning
- Stabilizer Jacks
- Power Tongue Jack
- Electric Awning
- Roof Ladder
- Skylight Over Tub
- Black Tank Flush
- 30 lb LP Bottles
- Cable / Satellite TV Ready
- 160W Solar Panel w/ Regulator
- Climate A Package (Radiant Foil & 12V Heat Strips)
- Storage Plus Door (Per Floor Plan)
- Tankless Water Heater
See us for a complete list of features and available options.
All features and specifications are subject to change.
